IP65 Hybrid Inverter 14kw

12KW 14KW IP65 Hybrid Inverter With 3MPPT High Generation & Scalabillity Max charging and discharging current of up to 250A. Up to 200%DC input oversizing and PV current to 32A. 182 & 210 PV modules: Max 10 pcs parallel for on-grid and off-grid operation. Adaptable Applications AC couple...

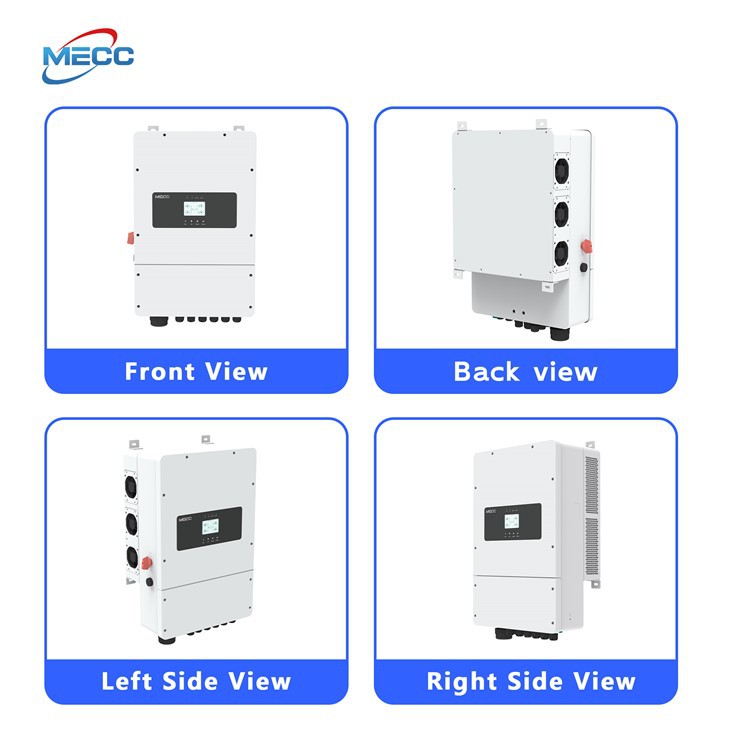

12KW 14KW IP65 Hybrid Inverter With 3MPPT

Max charging and discharging current of up to 250A. Up to 200%DC input oversizing and PV current to 32A.
182 & 210 PV modules: Max 10 pcs parallel for on-grid and off-grid operation.

6 adjustable time slots for charging and discharging the battery.

Seamless Transition: Backup with UPS-level switching < 10ms 10 seconds of 200% overload capabilty.
IP65 ingress protection

The IP65 7-16KW Hybrid Inverter is highly versatile and durable. With an IP65 rating, it resists dust and water, enabling reliable outdoor use. Its 7-16KW power range suits diverse applications, from homes to small scale commercial setups. It supports grid tied and off grid modes, smartly managing power among solar panels, batteries, and the grid for optimized energy use and backup power. It can be paralleled for capacity expansion, is compatible with various energy storage and PV modules, and has communication functions for remote monitoring. Additionally, it outputs high quality pure sine wave AC power for sensitive electrical loads.

	HP1-7K5S2M	HP1-8K5S2M	HP1-10K5S2M	HP1-12K5S2M	HP1-14K5S2M	HP1-16K5S2M

	15000WP	16000WP	20000WP	24000WP	28000WP	32000WP
	500V
	60V
	60-500
	70V
	2/2		3/2
	32/32		32/32/32
	40/40		40/40/40

	13800W				20700W
	60A				90A
	7500W	8000W	10000W	120000W	14000W	16000W
	7500W	8800W	11000W	132000W	15400W	17600W
	L/N/PE,220/230/240
	50/60 HZ
	45-55 HZ /55-65 HZ
	34.1A	40.0A	50.0 A	60.0A	70.0 A	80.0 A
	34.1A	36.4A	45.5A	54.6A	63.6A	72.7A
	<3%
	>{{0}}.99 AT RATED POWER(ADJUSTABLE 0.8 LEADING-0.8LAGGING)

	7500W	8000W	10000W	120000W	14000W	16000W
EPS PEAK POWER(10S)	2 TIMES OF RATED POWER,10S
	L/N/PE,220/230/240
	50/60 HZ
	34.1 A	36.4 A	45.5A	54.5A	63.6A	72.7A
	<3%
ON/OFF-GRID SWITCHOVER TIME	<10 MS

	496505225
	34 KG

	IP65

How does the IP65 Hybrid Inverter handle voltage fluctuations in the grid?

The inverter is equipped with advanced voltage regulation algorithms. When grid voltage fluctuations occur, within the range of ±10% of the rated grid voltage, the inverter can automatically adjust its output voltage to maintain stable power supply to the load. If the grid voltage goes beyond this range, the inverter may disconnect from the grid to protect itself and the connected devices.

Can the IP65 Hybrid Inverter be used in a location with a lot of electromagnetic interference?

Yes, the IP65 single phase hybrid inverter is designed with electromagnetic shielding measures. It can operate in environments with a certain level of electromagnetic interference, such as near industrial equipment or power lines. However, it is recommended to keep a safe distance from extremely high intensity electromagnetic sources to ensure optimal performance.

The maximum charging current for the battery varies depending on the model. Generally, it can range from 10A to 50A. For example, in some smaller capacity models, the maximum charging current is 10A, while in larger capacity models, it can reach up to 50A. This allows for efficient charging of different types and capacities of batteries.
